52 25 070 Removing and installing/replacing wooden trim on rear center armrest

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LEATHER COVER on rear center armrest

Release screws (1).

Remove wooden trim.

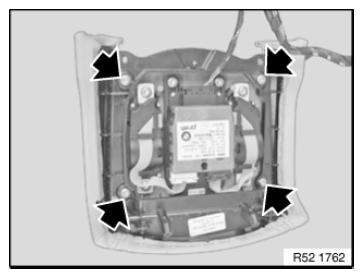

Fig 1: Locating Wooden Trim Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Remove rear CONTROLLER .
