52 25 038 Removing and installing/replacing seat frame on left or right rear seat

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LEFT OR RIGHT REAR SEAT

Unfasten plug connection (1) and disconnect.

Lever out clip.

Feed out wiring harness.

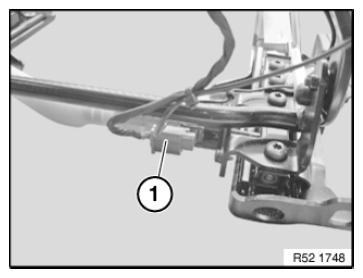

Fig 1: Identifying Plug Connection On Drive Unit For Seat Cushion Tilt Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Fig 2: Identifying Plug Connection On Drive Unit For Forward/Back Seat Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on left and right.

Remove backrest.

Installation note:

Replace microencapsulated screws (1).

Tightening torque 52 25 08AZ .

Fig 3: Identifying Backrest Frame Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The new seat frame part contains all the drives.
