52 25 025 Removing and installing complete center cushion section for rear seat

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove ARMREST FOR REAR SEAT BACKREST

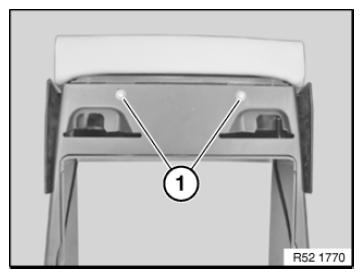

Release screws (1).

Fig 1: Identifying Rear Seat Centre Cushion Screws

Courtesy of BMW OF NORTH AMERICA, INC.

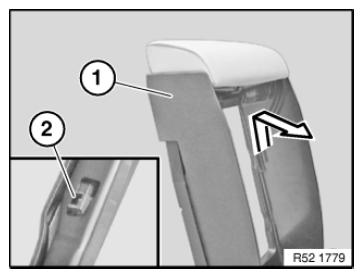

Remove frame (1) in direction of arrow.

Installation:

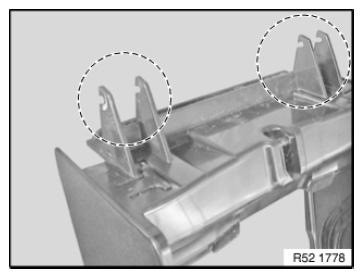

Make sure retaining lugs are correctly seated in guide.

The frame must be replaced if the retaining lugs are faulty.

Fig 2: Removing Frame

Courtesy of BMW OF NORTH AMERICA, INC.

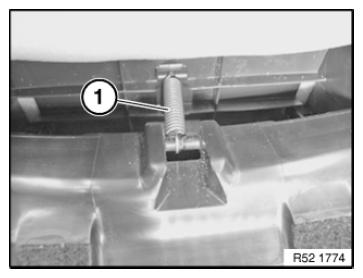

Disconnect spring (1).

Fig 3: Identifying Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Removing cushion section on left and right in succession:

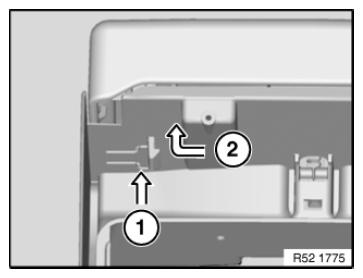

Press retaining tab.
Press latch mechanism outwards and pull seat cushion upwards.

Unclip cushion section towards rear from pivot bearing.

Fig 4: Pressing Latch Mechanism And Pulling Seat Cushion Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

For a better overview, the following operation is shown with the seat cushion removed.

Installation:

Make sure cushion section is correctly seated in pivot bearing.

Fig 5: Identifying Cushion Section

Courtesy of BMW OF NORTH AMERICA, INC.
