Replacement only

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

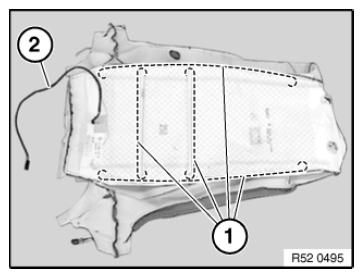

Remove trim wires (1) from backrest cover.

(2) Seat heating cable

Installation note:

Push trim wires (1) into new backrest cover.

If necessary, cut locators for trim wires in new part.

Fig 1: Identifying Backrest Cover Trim Wires And Seat Heater Cable

Courtesy of BMW OF NORTH AMERICA, INC.

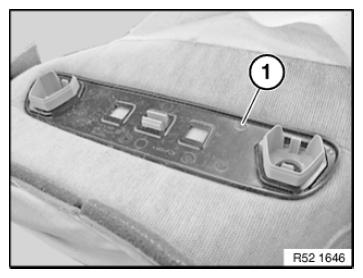

Lever out locking strip of head restraint guide with special tool 1 00 9 317 .

Fig 2: Identifying Head Restraint Guide Locking Strip

Courtesy of BMW OF NORTH AMERICA, INC.
