52 14 886 Replacing gas cartridge for crash-active headrest on left or right (up to 09/2010)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt tensioners.
Incorrect handling may result in triggering of the crash-active headrest and thereby cause injury.

Switch off the ignition!

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE CABLE
Adjust head restraint towards top to maximum extent

IMPORTANT: Renewal of pyrotechnics may be carried out up to 5 times.
Triggering frequency is denoted on the sticker on the head restraint carrier.
Labels are available as spare parts.

Starting situation:

Head restraint is in the crash position after activation.

NOTE: Pyroactivator can only be removed in the triggered state.
The complete head restraint must be replaced in the event of a crash-active headrest fault message and non-activated pyroactivator.

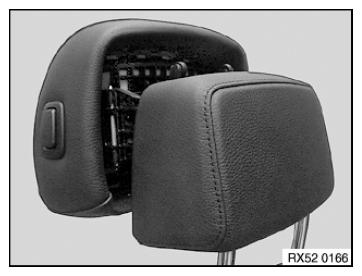

Fig 1: Identifying Head Restraint

Courtesy of BMW OF NORTH AMERICA, INC.

Removing cover:

Raise cover (1) and pull rearwards.

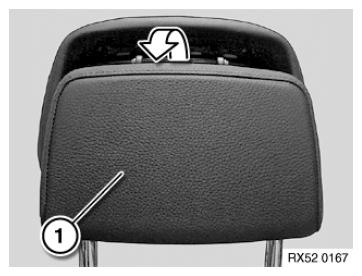

Fig 2: Pulling Head Restraint Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Removing pyrotechnics:

Press together mounting (1) for pyrotechnics at tabs.

Feed out pyrotechnics.

Fig 3: Pressing Pyrotechnical Device Bracket Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Removing pyroactivator:

Pull pyroactivator (2) out of mount (1) for pyrotechnics.

Unlock PLUG CONNECTION (3) and disconnect.

IMPORTANT: Dispose of plastic element and pyroactivator.

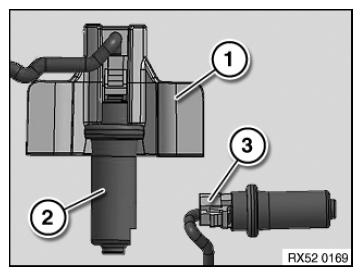

Fig 4: Identifying Mounting, Pyroactivator And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Procedure for installing pyrotechnics:

Bringing head restraint together version without button (multifunction seat):

Pull apart spring catches and push together head restraint.

Maintain position.

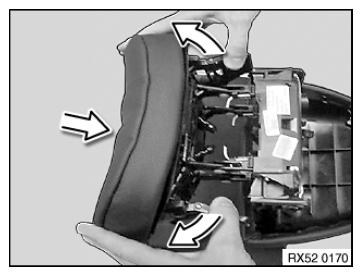

Fig 5: Pushing Head Restraint

Courtesy of BMW OF NORTH AMERICA, INC.

Bringing head restraint together version with button (basic version):

Press button (1) and push head restraint together.

Maintain position.

Fig 6: Pressing Head Restraint Button

Courtesy of BMW OF NORTH AMERICA, INC.

Locking release plate:

Hold pushed-together head restraint in position and push release plate (1) upwards up to limit position.

Release plate (1) must audibly snap into place.

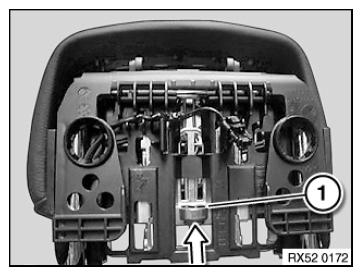

Fig 7: Pushing Release Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Checking head restraint lock:

Check end position of release plate (1).

All four springs must be engaged (snapped into place).

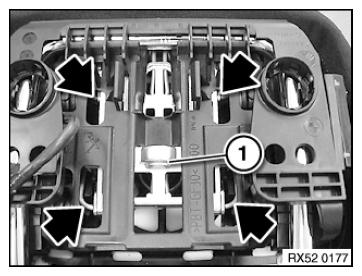

Fig 8: Locating Head Restraint Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing pyrotechnics:

Connect connector (1) to new pyroactivator (2) and LOCK .

Clip pyroactivator (2) into new mount (3).

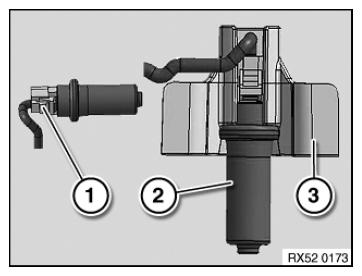

Fig 9: Identifying Connector, Pyroactivator And Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Installing pyrotechnics:

Press together mounting for pyrotechnics at tabs.

Insert mounting for pyrotechnics into release plate and tilt in upward direction.

Mounting for pyrotechnics must audibly snap into place.

NOTE: Check seating of retaining lugs in mounting.

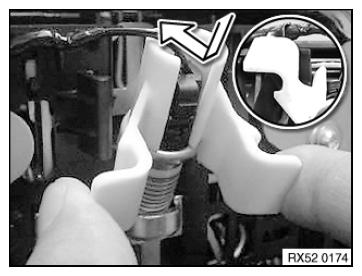

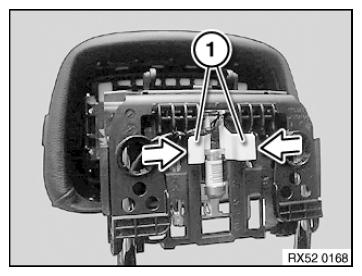

Fig 10: Pressing Pyrotechnical Device Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Laying wiring harness:

Secure wiring harness in support section with strain relief.

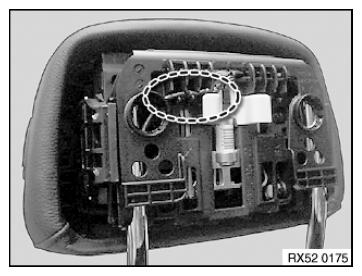

Fig 11: Identifying Support Section Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Mounting cover:

Clip cover onto support section.

Cover must audibly snap into place.

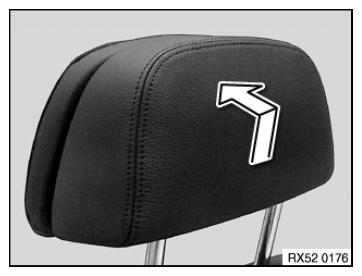

Fig 12: Installing Carrier Section Clip Cover

Courtesy of BMW OF NORTH AMERICA, INC.
