Replace seat cover

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Pull trim wires out of seat cover.

Installation note:

Slide trim threads into new seat cover. If necessary, cut mounting for trim threads.

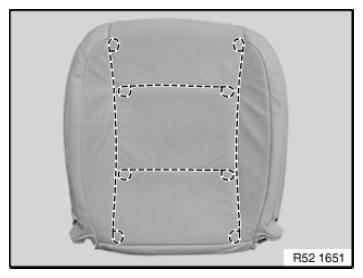

Fig 1: Identifying Seat Cover Trim Wires

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Bend new clamp (2) closed with pliers 52 0 050 .

Upholstery
Clamps
Trim wire in seat cover
Trim wire in upholstery
Seat cover

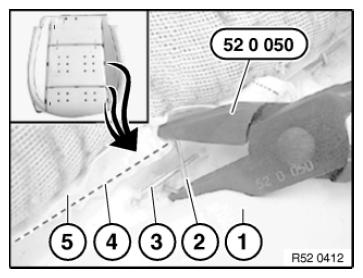

Fig 2: Bending Retainers Using Special Tool (52 0 050)
Courtesy of BMW OF NORTH AMERICA, INC.
