51 75 010 Removing and installing/replacing left or right steering assembly cover

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT UNDERBODY PROTECTION

Unscrew all bolts.

Tightening torque 51 75 1AZ .

Lever out expanding rivets (1).

Removing steering assembly cover (2).

Installation note:

If necessary, replace faulty expanding rivets (1).

Make sure steering assembly cover (2) is correctly seated.

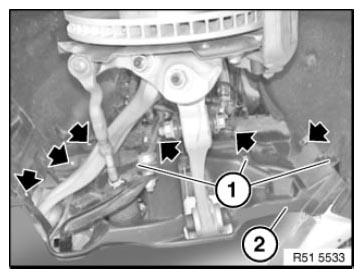

Fig 1: Identifying Steering Assembly Cover And Expanding Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

From April 09 the snap fasteners are discontinued and renewed by a conventional screw connection.
