51 49 000 Removing and installing or replacing trim for rear lid

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT LIGHT
Remove SWITCH FOR AUTOMATIC REAR LID ACTUATION

Additionally on US vehicles:

Feed out rear lid emergency release mechanism

Release screws (1).

Open tool box (2), disengage retaining strap and feed out tool box (2).

Release expander rivets at marked points.

Remove panel for rear lid (3).

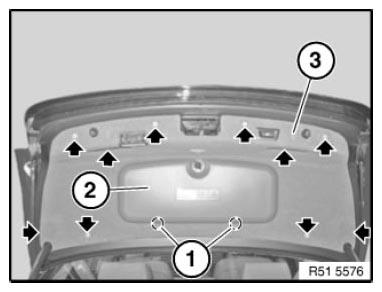

Fig 1: Identifying Rear Lid, Tool Box And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
