51 22 360 Replacing seal for door gap/roof frame on left or right rear door

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

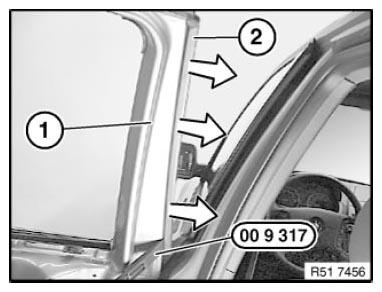

Lever out seal (2) on door window frame at front (1) with special tool 00 9 317 .

Fig 1: Removing Seal On Front Door Window Frame With Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

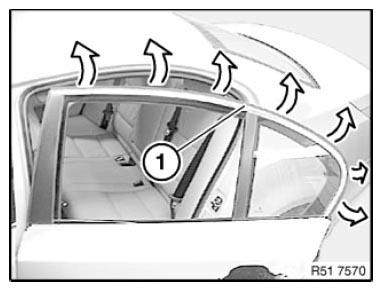

Pull off seal (1) beginning at the front toward the rear.

Installation note:

Thread in seal (1) in window frame first on the inside and then on the outside.

Fig 2: Pulling Off Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Vehicle type Touring only:

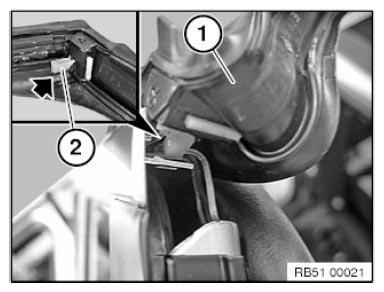

Feed in the plastic lug (2) of the seal (1) correctly at the top rear window frame corner.

Fig 3: Identifying Plastic Lug And Seal

Courtesy of BMW OF NORTH AMERICA, INC.

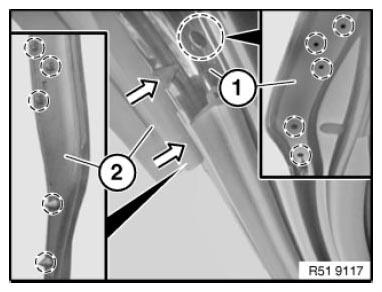

Unclip seal (2) from inside door leaf (1) at bore holes.

Fig 4: Unclipping Seal From Inside Door Leaf

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Moisten seal with water for easier mounting.
