51 22 300 Removing and installing/replacing weather strip on rear door on left or right

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Observe PROCEDURE for using special tool 00 9 324 .
The "INSTRUCTIONS ON FITTING WINDOW GUIDE SEALS " serve as the basis for this repair instruction and must be observed without fail.

IMPORTANT: If reusing the existing window cavity cover strip (1), make sure it is not bent.

Tape off area below weather strip with fabric adhesive tape (2).

Lever out weather strip (1) using special tool 00 9 324 (starting at B-pillar).

At the same time, carefully lift out B-pillar cover, weather strip (1) from outside with special tool 00 9 325 .

Carefully lift out weather strip (1) in area of fixed side window from outside with special tool 00 9 325 .

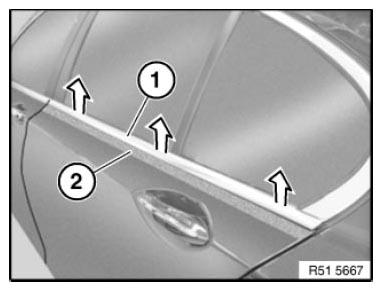

Fig 1: Removing Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Sealing (1) must be correctly fitted in cover strip (2).

Moisten sealing (1) prior to installation with APPROVED LUBRICANT .

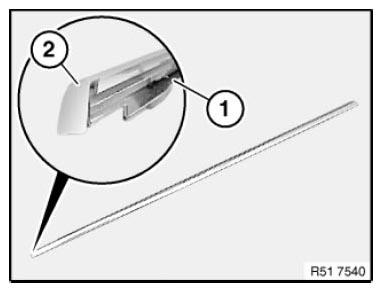

Fig 2: Identifying Seal And Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
