51 12 390 Removing and installing/replacing exhaust pipe trim in bumper cover on left or right

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM ON BUMPER TRIM AT BOTTOM

Release screws (1).

Remove exhaust pipe trim (2).

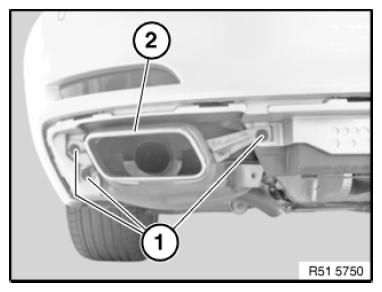

Fig 1: Identifying Exhaust Pipe Trim And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
