51 46 050 Removing and installing/replacing top trim on rear apron

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Release impact plates (1) with special tool 51 2 040 .

Fold luggage compartment floor trim panel.

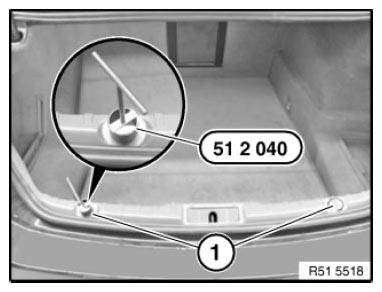

Fig 1: Releasing Impact Plates Using Special Tool 51 2 040

Courtesy of BMW OF NORTH AMERICA, INC.

Release expanding rivets (1).

Feed out trim (2).

Installation:

Make sure rubber seal (3) is correctly seated on trim (2).

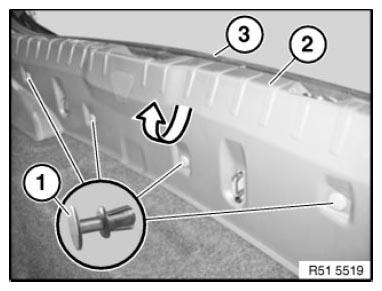

Fig 2: Feeding Out Trim

Courtesy of BMW OF NORTH AMERICA, INC.
