51 46 028 Removing and installing/replacing rear air outlet trim

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove panel for rear window shelf. See TRIM PANEL or TRIM PANEL WITH ROLLER SUNBLIND .

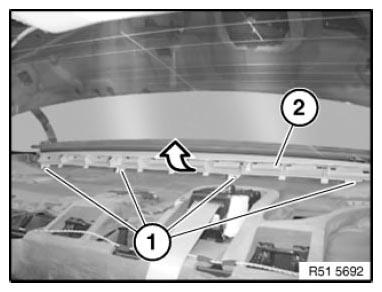

Release screws (1) and feed out air outlet trim (2) towards front.

Installation:

Make sure air outlet trim (2) is correctly seated in associated guides.

Fig 1: Feeding Out Air Outlet Trim With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

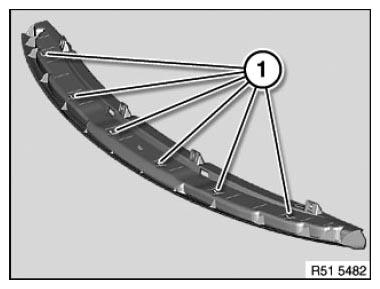

Guides (1) must not be damaged.

Fig 2: Identifying Guides

Courtesy of BMW OF NORTH AMERICA, INC.
