51 16 400 Removing and installing/replacing roller sunblind on fixed side window of left or right rear door

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

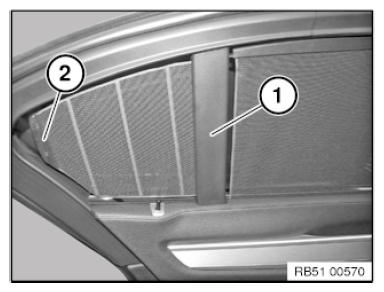

Extend the roller sunblind (2).

Unclip the window guide cover (1).

Fig 1: Identifying Window Guide Cover And Roller Sunblind

Courtesy of BMW OF NORTH AMERICA, INC.

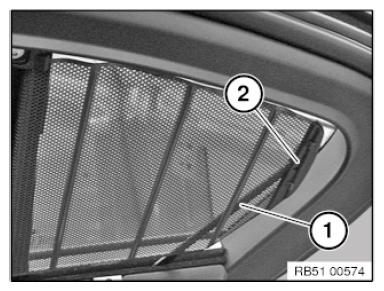

Unclip the cam arm (1) from the roller sunblind (2).

Installation note:

Attach the cam arm (1) and secure with bolts.

Check function.

Fig 2: Identifying Cam Arm And Roller Sunblind

Courtesy of BMW OF NORTH AMERICA, INC.

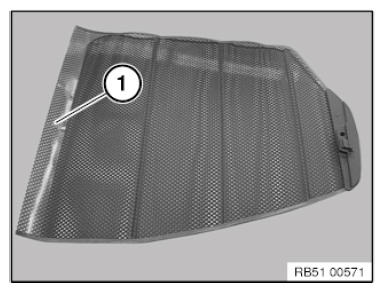

Pull the protective film off the adhesive tape (1) of the new sunblind cloth.

Fig 3: Identifying Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

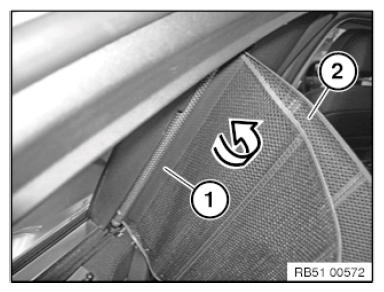

Completely roll out the sunblind cloth (2).

Clean the rod.

Set the new sunblind cloth (1) inside exactly matching onto the defective sunblind cloth (2).

Retract both sunblind cloths together slowly in two turns.

Fig 4: Identifying Rolling Sunblind Cloth

Courtesy of BMW OF NORTH AMERICA, INC.

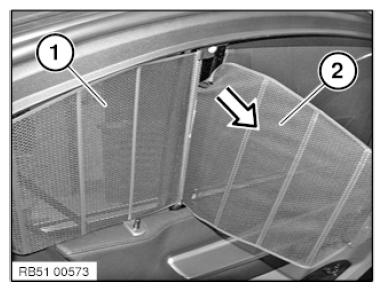

Completely extend the new sunblind cloth (1).

Pull off the defective sunblind cloth (2) in direction of arrow.

Fig 5: Removing Defective Sunblind Cloth

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

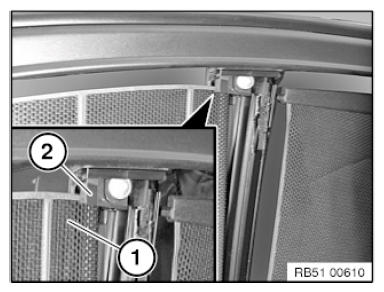

The sunblind cloth (1) must run behind the lug (2).
