51 16 373 Removing and installing/replacing lock for glovebox cover on left or right (glovebox handle)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Open glovebox cover

Release screws (1).

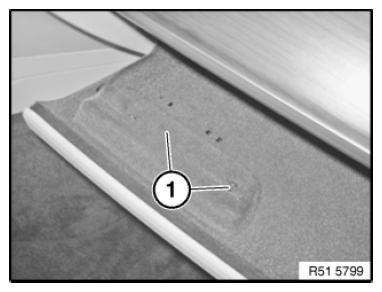

Fig 1: Identifying Glovebox Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove handle lock (1).

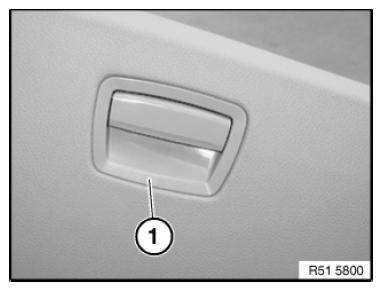

Fig 2: Identifying Handle Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure spring and rubber (1) of handle (2) are correctly seated.

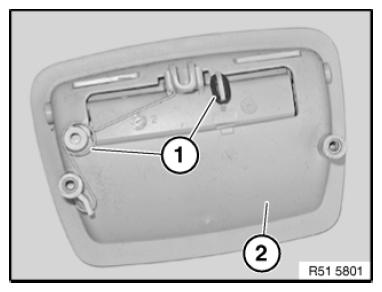

Fig 3: Identifying Spring, Rubber And Handle

Courtesy of BMW OF NORTH AMERICA, INC.
