51 16 273 Removing and installing/replacing fastener for center armrest

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CENTRE ARMREST

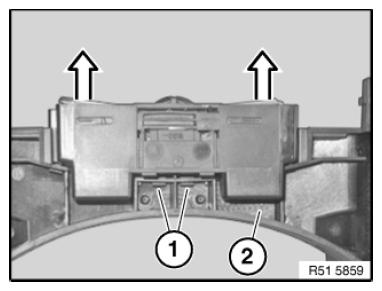

Unlock fastener for center armrest (1) and pull out in direction of arrow from center armrest (2).

Fig 1: Removing Fastener For Centre Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

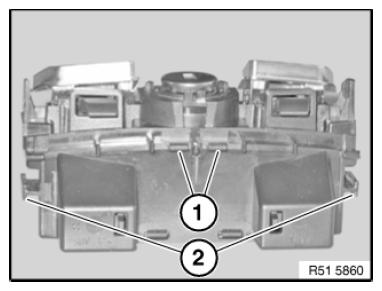

Release elements (1) must not be damaged.

Ensure correct guiding (2).

Fig 2: Identifying Guiding And Elements

Courtesy of BMW OF NORTH AMERICA, INC.
