51 16 225 Removing and installing/replacing decorative trim on center console on left or right

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SIDE TRIM PANEL ON CENTRE CONSOLE

Release screws (1) on left and right sides.

Pull out rear center console trim (2) in direction of arrow.

IMPORTANT: Do not disconnect plug connections behind.

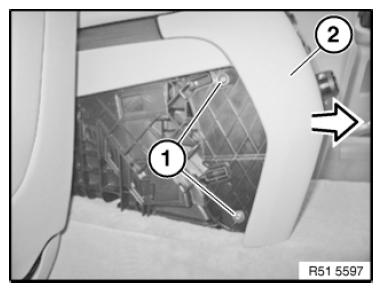

Fig 1: Removing Rear Centre Console Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Slide decorative trim on center console in direction of arrow and remove from center console (2).

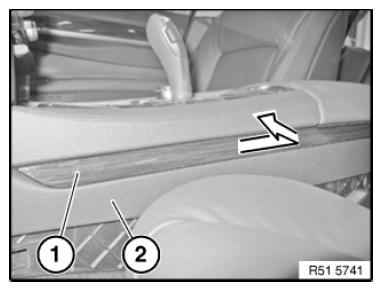

Fig 2: Sliding Decorative Trim On Centre Console

Courtesy of BMW OF NORTH AMERICA, INC.
