51 16 190 Removing and installing/replacing lock cylinder in center armrest
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

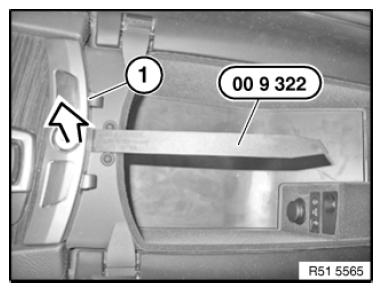

Carefully lever front center armrest trim (1) with special tool 00 9 322 out of center console and remove.

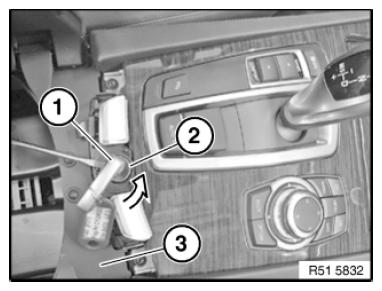

Turn ignition key (1) in direction of arrow to left.
Carefully press lock cylinder (2) upwards with a suitable tool and remove from center armrest (3).
Installation:
Make sure lock cylinder (2) is correctly seated.
