51 16 163 Removing and installing/replacing rear center console cover

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Move front seats forwards
Remove SIDE TRIM PANELS ON CENTRE CONSOLE

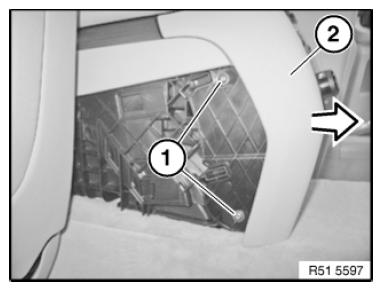

Fig 1: Identifying Screws And Rear Centre Console Cover
Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on left and right sides.

Detach rear center console cover (2) in direction of arrow.

Unlock plug connections behind and disconnect.

Replacement:

Remove fresh air grille in rear passenger compartment. See FRESH-AIR GRILLE (BASIC A/C SYSTEM) or FRESH-AIR GRILLE (HIGH A/C SYSTEM) .

Remove REAR A/C SYSTEM CONTROL PANEL

Remove LOWER REAR CENTRE CONSOLE COVER
