51 16 080 Removing and installing or replacing sun visor and left or right counter support
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

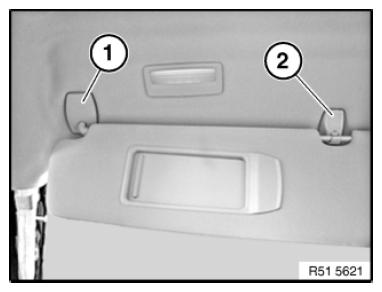

Lever out cover (1) on joint.
Lever out trim (2) on counter support.
Installation note:
Cover (1) and trim (2) must not be damaged.

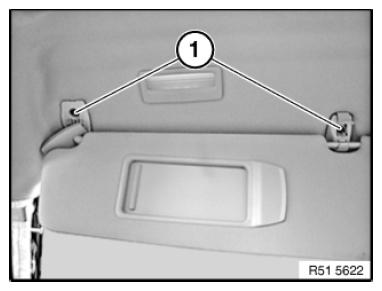

Release screws (1).
Tightening torque 51 16 02AZ .
Disconnect plug connection for light and remove sun visor.
Installation note:
Perform function check on lighting.
