51 16 063 Removing and installing/replacing inside mirror (with rain sensor)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Work may only be carried out at a room/object temperature of 18... 28 ° C.
If this can not be guaranteed (cold/hot countries), it is necessary to equalize the temperature of the windscreen, mirror base and inside mirror (e.g. vehicle left to stand indoors or in the shade for at least 30 minutes).

IMPORTANT:

To avoid windscreen breakage:

Screw inside mirror off mirror mount.

Inside mirror must not be pulled or pressed off towards front or rear.

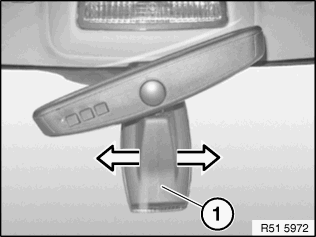

Use suitable tool to unclip end cap (1) in direction of arrow and remove.

Fig 1: Unclipping End Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

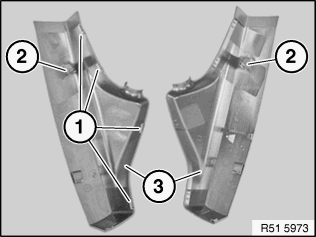

Retaining hooks (1) and guides (2) of end caps (3) must not be damaged.

Replace end caps (3) if necessary.

Fig 2: Identifying End Caps, Guides, And Hooks

Courtesy of BMW OF NORTH AMERICA, INC.

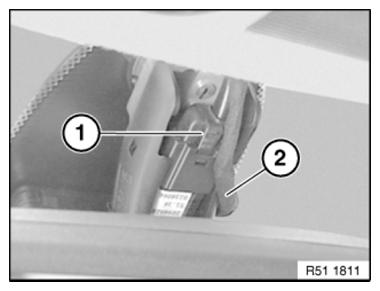

Unfasten plug connection (1) and disconnect.

NOTE: Pay attention to cable routing (2) for rain sensor.

Fig 3: Identifying Rain Sensor Plug Connection And Cable Routing

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not pull or press inside mirror off towards front or rear.

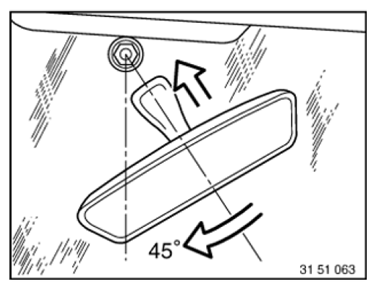

Twist mirror base approx. 45° to right until mirror base is released from mirror mount.

Fig 4: Twisting Mirror Base

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Twist mirror foot by approx. 45° and fit to mirror base.
Turn mirror base until it engages on mirror mount.

Fig 5: Engaging Mirror Base On Mirror Mount
Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
