51 16 063 Removing and installing/replacing inside mirror (with high-beam assistant)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Work may only be carried out at a room/object temperature of 18... 28 ° C.
If this can not be guaranteed (cold/hot countries), it is necessary to equalize the temperature of the windscreen, mirror base and inside mirror (e.g. vehicle left to stand indoors or in the shade for at least 30 minutes).
IMPORTANT:

To avoid windscreen breakage:

Screw inside mirror off mirror mount.

Inside mirror must not be pulled or pressed off towards front or rear.

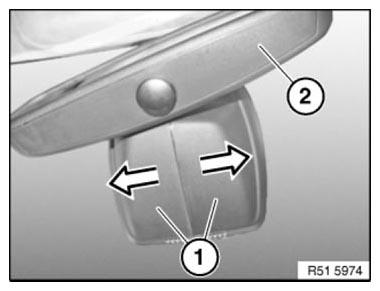

Carefully press end caps (1) from below and at same time pull them apart in direction indicated by arrow; this releases clip connection of both caps (1).

Twist inside mirror (2) and remove end caps (1) from inside mirror.

Fig 1: Removing End Caps
G06885446Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

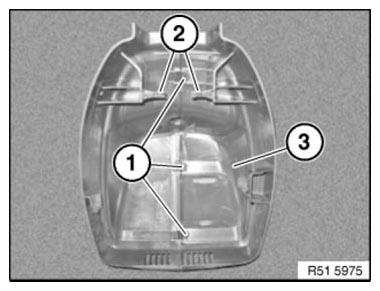

Retaining hooks (1) and guides (2) of end caps (3) must not be damaged.

Replace end caps (3) if necessary.

Fig 2: Identifying Hooks, Guides And End Caps
G06885447Courtesy of BMW OF NORTH AMERICA, INC.

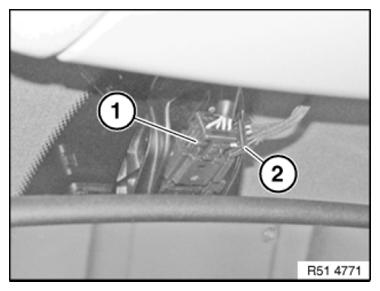

Unlock and disconnect plug connections (1 and 2).

Installation note:

Pay attention to cable routing for rain sensor.

Fig 3: Identifying Plug Connections
G08559570Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Do not pull or press inside mirror off towards front or rear.

Twist mirror base approx. 45° to right until mirror base is released from mirror mount.

Fig 4: Twisting Mirror Base
G08559571Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

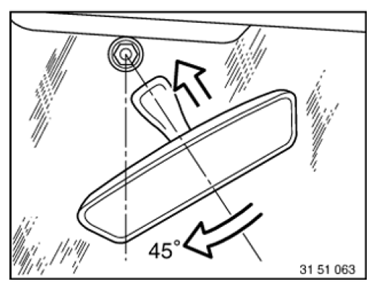

  1. Twist mirror foot by approx. 45° and fit to mirror base.
  2. Turn mirror base until it engages on mirror mount.
Fig 5: Engaging Mirror Base On Mirror Mount
G08559572Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Normalization or initialization is not necessary.

High-Beam Assistant is automatically aligned under the following conditions:

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
