51 71 346 Removing and installing / replacing right (rear) suspension cross-brace

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Driving without the suspension cross-brace is not permitted! (risk of damage to the body).

Release expanding rivet (1) and remove cover (2).

Installation note:

Replace damaged expanding rivet.

Holder of cover (2) must snap into place in suspension cross-brace during installation.

Fig 1: Identifying Expanding Rivets And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 51 61 1AZ .

Remove suspension cross-brace (2).

Installation note:

Make sure suspension cross-brace (2) is in correct installation position.

Replace screw (1).

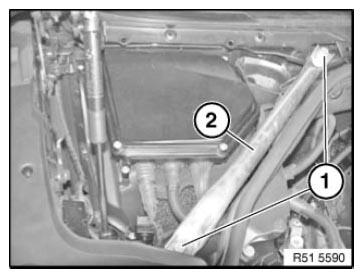

Fig 2: Identifying Suspension Cross-Brace And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
