Positioning aid "C1" for rear door, left ("D1" right)
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Detach prestamped positioning aid from backing.
- Positioning aid "C1" rear door, left (door lock, top)
- Positioning aid "D1" rear door, right (door lock, top)

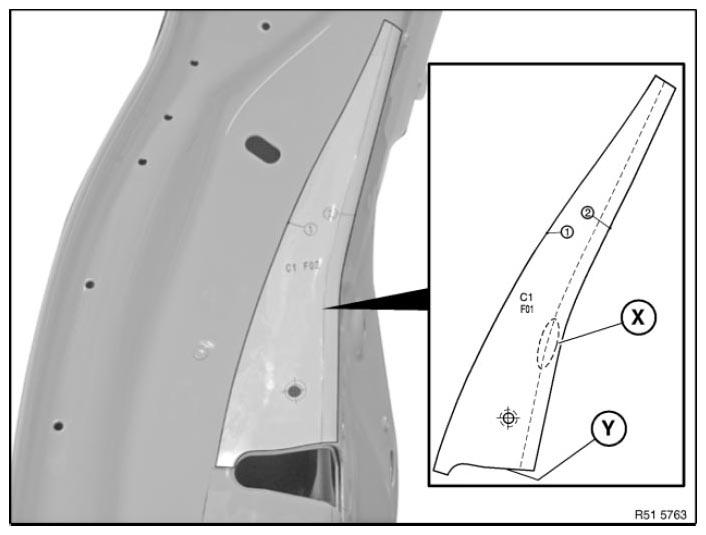

If necessary, cut out prestamped cut-out for bore from positioning aid. Align positioning aid with printed help markings (X and Y) and contact edge (2) to rear door and press.
Seal must rest on positioning edge (1) during sticking.
X Start of bend radius
Y Opening for door lock
