Position of seal (3) on rear door

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

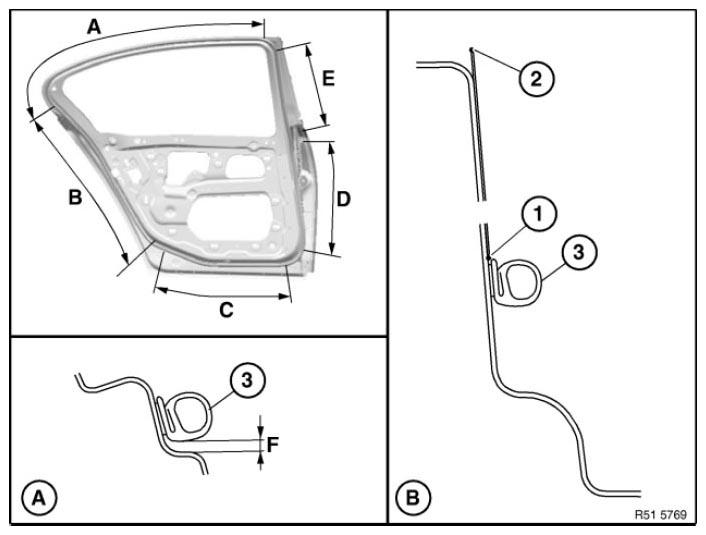

Fig 1: Identifying Position Of Seal On Rear Door

Courtesy of BMW OF NORTH AMERICA, INC.

Area (A) at distance (F) to door rabbet.

Area (B) at line (1) of positioning aids (2) to be stuck on (observe following work steps).

Clean bonding surfaces on paint with adhesive cleaner (sourcing reference: BMW Parts Department).

F = 3.6 mm

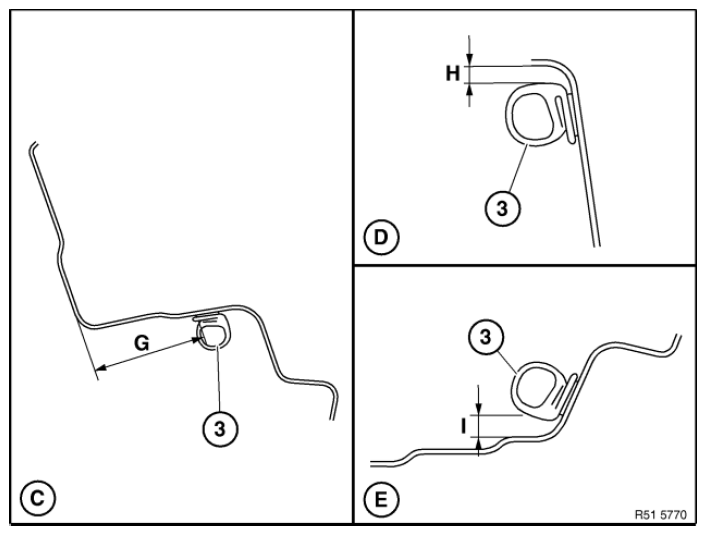

Fig 1: Identifying Position Of Seal On Rear Door

Courtesy of BMW OF NORTH AMERICA, INC.

Area (C) at distance (G) to inner door panel.

Area (D) at distance (H) to door rabbet.

Area (E) at distance (I) to door rabbet.

Clean bonding surfaces on paint with adhesive cleaner (sourcing reference: BMW Parts Department).

G = 55.3 mm

H = 4.4 mm

I = 6.7 mm
