Positioning aid "A1" for front door, left ("B1" right)
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Detach prestamped positioning aid from backing.

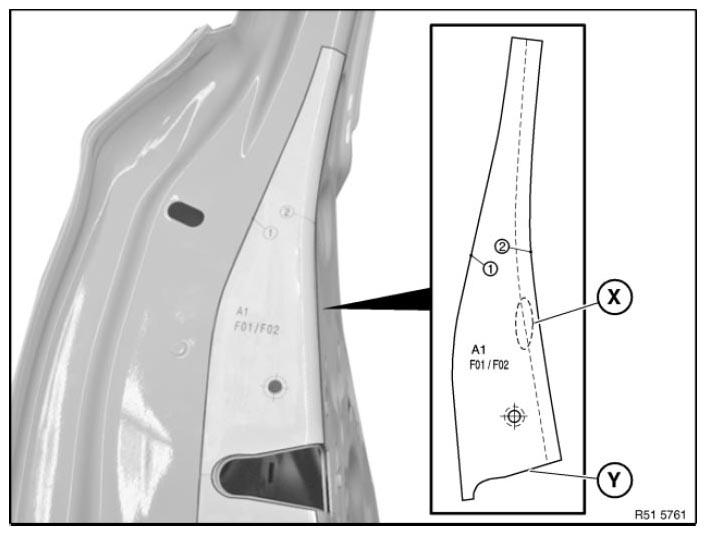

- Positioning aid "A1" front door, left (door lock, top)
- Positioning aid "B1" front door, right (door lock, top)
If necessary, cut out prestamped cut-out for bore hole from positioning aid. Align positioning aid with printed marks (X and Y) and contact edge (2) to front door and press.
Seal must rest on positioning aid (1) during bonding.
X Start of bending radius
Y Recess for door lock
