51 71 041 Removing and installing/replacing rear left or right wheel arch cover
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove REAR WHEEL

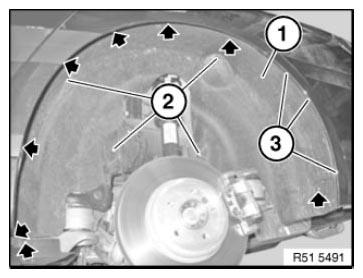

Release all marked screws (arrows).
Release screws (3).
Unscrew nuts (2).
Carefully feed out rear wheel arch cover (1) towards bottom.
Installation note:
Ensure wheel arch cover (1) is correctly seated.
Make sure all screws are installed in correct position.
Screws (3) are longer than remaining screws.
