51 71 039 Removing and installing/replacing front left or right wheel arch cover (rear section)
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Prior to removing, pay attention to the exact installation position with respect to the adjoining components.
Necessary preliminary tasks:
- Remove FRONT WHEEL

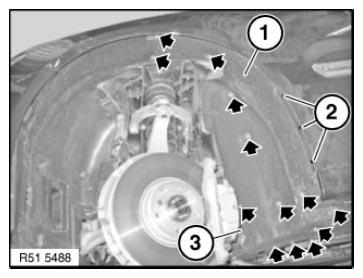

Unscrew all bolts.
Release expanding rivets (2).
Release expanding rivet (3).
Carefully feed out wheel arch cover (1) towards bottom.
Installation note:
If necessary, replace faulty expanding rivets.
Ensure wheel arch cover (1) is correctly seated.
