51 64 020 Removing and installing/replacing the top rear connection (connection of both wheel arches at front): Replacement

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Modify SUSPENSION CROSS-BRACE ON LEFT AND RIGHT . (Not for M5/M6 model)

Release screws (1).

Tightening torque 51 61 4AZ .

Detach rear connection (2) from front connection (3).

Installation note:

Guide lug secures rear connection (2) to front connection (3).

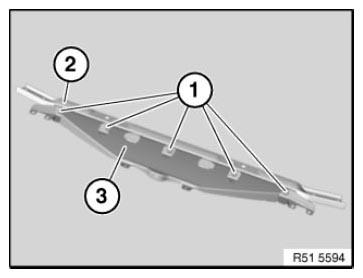

Fig 1: Identifying Screws, Rear And Front Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Only if replacing front connection (1):

Modify clips (2).

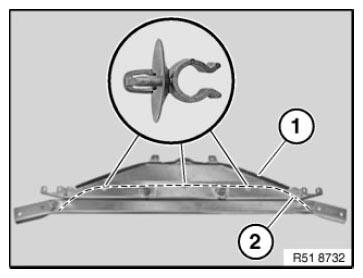

Fig 2: Identifying Front/Rear Connection And Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
