51 64 020 Removing and installing/replacing the top rear connection (connection of both wheel arches at front): Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of burning!
Only perform work after engine has cooled down.

IMPORTANT: Driving without the connection is not permitted. (risk of damage to the body).

Necessary preliminary tasks:

Remove SIDE ENGINE COMPARTMENT LID GASKET MOUNTING in working area

Release screws (1). (Not for M5/M6 model)

Tightening torque 51 61 1AZ .

Unfasten screws (2).

Tightening torque 51 61 3AZ .

Release screws (3).

Tightening torque 51 61 5AZ .

Release screws (4).

Release screw (5).

Tightening torque 51 61 6AZ .

Raise front connection (6) together with rear connection (7).

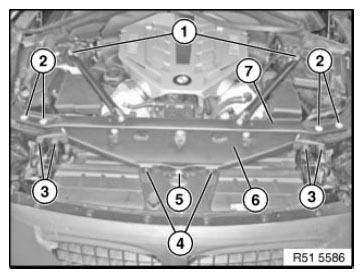

Fig 1: Identifying Upper Rear Connection Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown removed here for purposes of clarity.

Raise front/rear connection (1) and disengage Bowden cable (2) at marked points.

Remove front/rear connection (1) with suspension cross-braces.

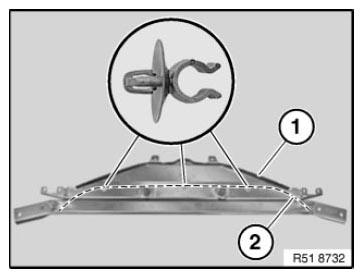

Fig 2: Identifying Front/Rear Connection And Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
