51 21 370 Removing and installing/replacing cover (seal) on front door at bottom left or right

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

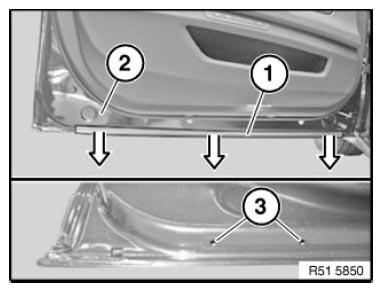

Detach cover (1) downwards in direction of arrow from front door (2).

Installation:

Clip clips of cover (1) correctly into bores (3).

Fig 1: Disconnecting Cover From Front Door

Courtesy of BMW OF NORTH AMERICA, INC.

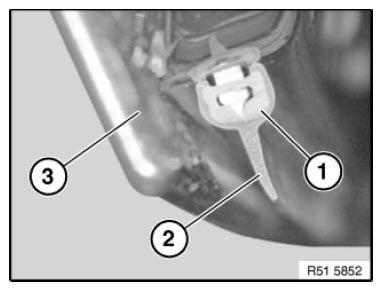

IMPORTANT: Note installation direction of cover (1).
Curve of sealing lip (2) must point away from door frame (3).

Fig 2: Identifying Cover, Sealing Lip And Door Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

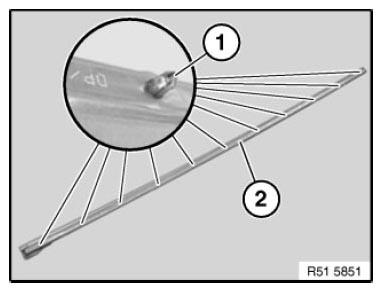

Clips (1) of cover (2) must not be damaged.

Fig 3: Identifying Clips And Cover

Courtesy of BMW OF NORTH AMERICA, INC.
