51 21 235 Removing and installing/replacing Bowden cable for inside door opener on left or right front door

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT DOOR TRIM

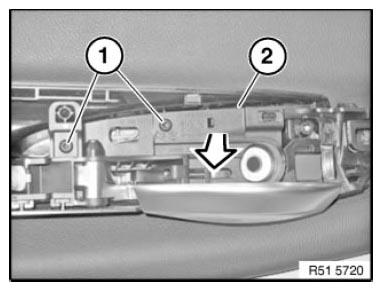

Release screws (1).

Carefully remove door opener (2) in direction of arrow.

IMPORTANT: If the door opener is pulled out too vigorously, there is a risk of damage to the door opener and the Bowden cable.

Fig 1: Removing Door Opener

Courtesy of BMW OF NORTH AMERICA, INC.

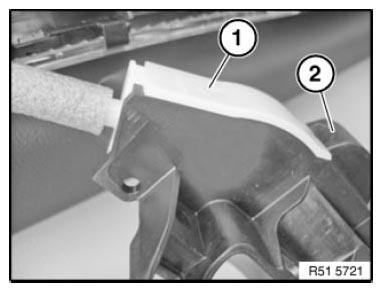

Unlock holder for Bowden cable (1) and feed out of door trim panel.

Fig 2: Identifying Bowden Cable And Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
