51 11 180 Removing and installing/replacing trim grille for bumper trim (center)
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove TRIM GRILLE FOR BUMPER TRIM left and right

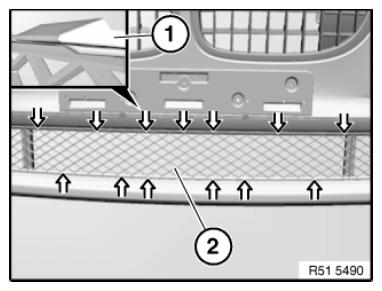

Unclip retaining lugs (1) and remove ornamental grille (2) towards front.
Installation:
Retaining lugs (1) must not be damaged.
