51 47 244 Removing and installing/replacing all luggage compartment trims (with ski bag)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT WHEEL ARCH PANEL ON LEFT .
Remove RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL
Remove BACKREST FOR REAR SEAT

Release screws (1) on ski bag trim (2).

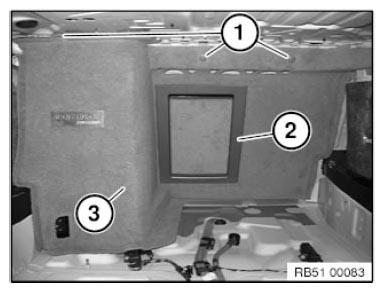

Fig 1: Identifying SKI Bag Trim And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Not with cool box or high-voltage system

Lever out expanding rivets (1).

Remove skibag trim (2).

Remove cover for luggage compartment separating wall (3).

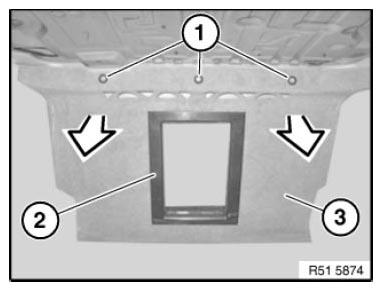

Fig 2: Removing Cover For Luggage Compartment Separating Wall

Courtesy of BMW OF NORTH AMERICA, INC.

With cool box or high-voltage system

Lever out expanding rivets (1).

Remove skibag trim (2).

Remove cover for luggage compartment separating wall (3).

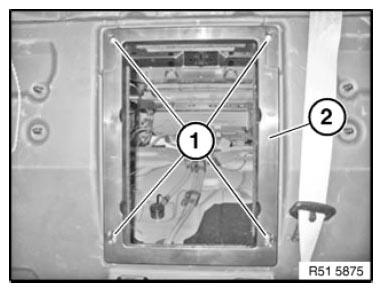

Fig 3: Identifying Expanding Rivets, Skibag Trim And Luggage Compartment Separating Wall

Courtesy of BMW OF NORTH AMERICA, INC.
