51 47 243 Removing and installing/replacing all luggage compartment trims (without ski bag): Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT WHEEL ARCH PANEL ON LEFT .
Remove RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL

NOTE: The luggage compartment partition wall F02 with optional equipment rear air conditioning is shown.

Lever out expanding rivet (1).

Feed out luggage compartment partition wall (2).

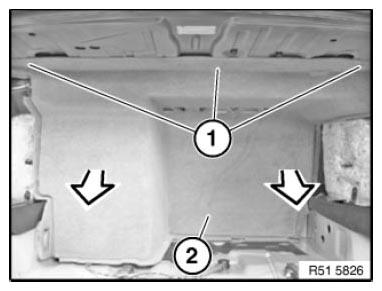

Fig 1: Feeding Out Luggage Compartment Partition Wall

Courtesy of BMW OF NORTH AMERICA, INC.

F01h and F02h only:

Release expanding rivets (1) and expanding rivets (2) and remove bulkhead panel (3).

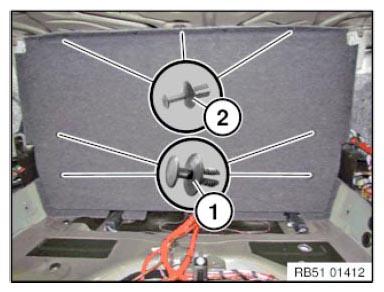

Fig 2: Identifying Expanding Rivets And Bulkhead Panel

Courtesy of BMW OF NORTH AMERICA, INC.
