51 47 171 Removing and installing/replacing flap in luggage compartment trim on right

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Open flap (1) at opening (2) and remove in direction of arrow.

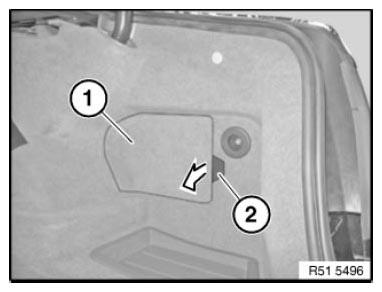

Fig 1: Opening Flap
G08508529Courtesy of BMW OF NORTH AMERICA, INC.
