51 47 072 Removing and installing/replacing finishing strip on rear left or right entrance (outer)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Lift cover panel (2) up and out at clips (1) using special tool 00 9 317 .

Remove cover (2).

NOTE: Depending on the model, cover panel (2) is secured with a different number of clips (1).

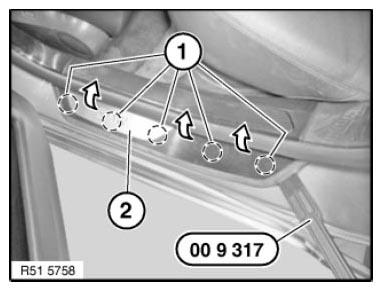

Fig 1: Prying Out Clips On Finishing Strip With Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If necessary, remove clips (1) from entrance with a suitable tool.

Replace faulty clamps (1).

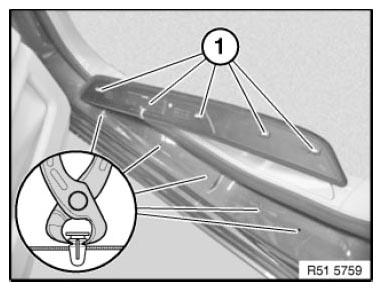

Fig 2: Identifying Finishing Strip Clips

Courtesy of BMW OF NORTH AMERICA, INC.
