24 31 010 Replacing torque converter shaft seal (GA6HP26Z)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

Necessary preliminary tasks:

IMPORTANT: After completion of work, check TRANSMISSION OIL LEVEL .
Use only the approved transmission fluid: Shell M-1375.4 ; BMW part number 83 22 0 142 516 ; 20 liters
Failure to comply with this instruction will result in serious damage to the transmission.

Secure transmission with special tool 24 0 200 on assembly stand 00 1 450 .

Remove TORQUE CONVERTER .

NOTE: Read and comply with note on installation of TRANSMISSION RETAINING BRIDGE .

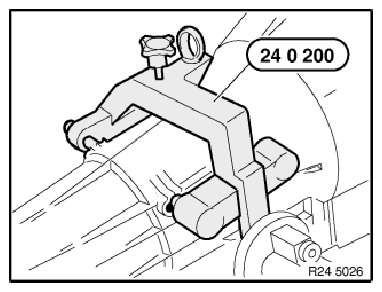

Fig 1: Securing Transmission Using Special Tool (24 0 200)
G08495784Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tool 24 2 353 to input shaft (1).

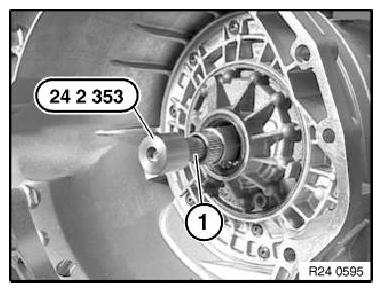

Fig 2: Connecting Special Tool (24 2 353) To Input Shaft
G08495785Courtesy of BMW OF NORTH AMERICA, INC.

Screw in special tool 24 2 351 until it is firmly connected with radial shaft seal.

Screw in special tool 24 2 352 to remove radial shaft seal.

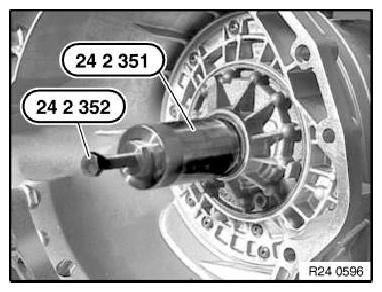

Fig 3: Removing Radial Shaft Seal Using Special Tool (24 2 351 And 24 2 352)
G08495786Courtesy of BMW OF NORTH AMERICA, INC.

Oil sealing lip on shaft seal.

Drive in radial shaft seal (1) with special tool 24 2 400 as far as it will go.

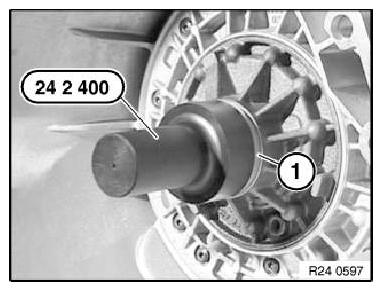

Fig 4: Installing Radial Shaft Seal Using Special Tool (24 2 400)
G08495787Courtesy of BMW OF NORTH AMERICA, INC.
