24 13 012 Replacing output flange shaft seal (GA6HP26Z)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

23 0 490
24 4 310

IMPORTANT: After completion of work, check TRANSMISSION OIL LEVEL .
Use only the approved transmission fluid: Shell M-1375.4 ; BMW part number 83 22 0 142 516 ; 20 liters
Failure to comply with this requirement will result in serious damage to the automatic transmission!

Necessary preliminary tasks:

Remove TRANSFER BOX

Drive a hole into radial shaft seal (1) using a center punch.

IMPORTANT: Do not use a drill as drillings may result in transmission malfunction.

Thread special tool 23 0 490 into radial shaft seal (1).

Drive out radial shaft seal (1) with impact weight (2).

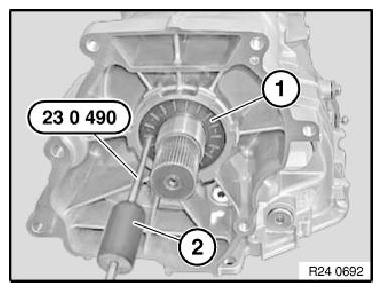

Fig 1: Removing Radial Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Coat sealing lips of new radial shaft seal with clean transmission oil.

Drive shaft seal firmly home with special tool 24 4 310.

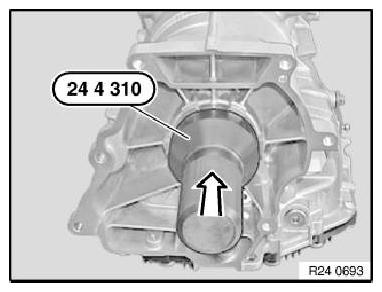

Fig 2: Installing Radial Shaft Seal Using Special Tool (24 4 310)

Courtesy of BMW OF NORTH AMERICA, INC.
