Cylinder head disassembled

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Check evenness of cylinder head lower face with a standard straightedge (1).

NOTE: Maximum deviation from flatness: longitudinal 0.10 mm.

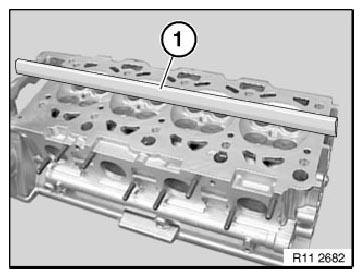

Fig 1: Checking Cylinder Head Lower Face Evenness Using Standard Straightedge

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Maximum deviation from flatness: transversal 0.05 mm.

Machining limit: see CYLINDER HEAD WITH LID - TECHNICAL DATA

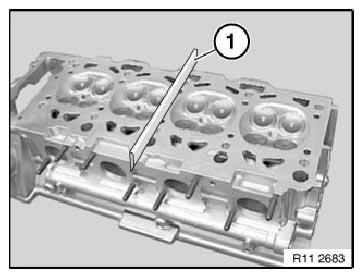

Fig 2: Checking Cylinder Head Lower Face Maximum Deviation From Flatness Using Standard Straightedge

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: A cylinder head gasket (+REP) 0.3 mm thicker than usual can be obtained for machined (resurfaced) cylinder heads.

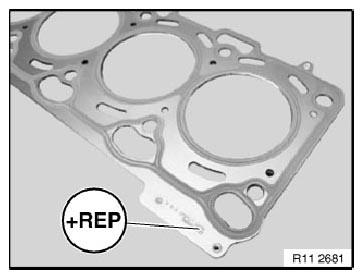

Fig 3: Identifying Cylinder Head Gasket (+REP)

Courtesy of BMW OF NORTH AMERICA, INC.
