11 12 112 Replacing both cylinder head gaskets (N63)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove left CYLINDER HEAD .
Remove right CYLINDER HEAD .

Installation note:

The cylinder head gasket (2) for cylinders 1-4 and cylinders 5-8 are identical.

There is no marking (TOP).

Cylinder head gasket (2) must depending on its styling be correctly positioned on the timing chain case.

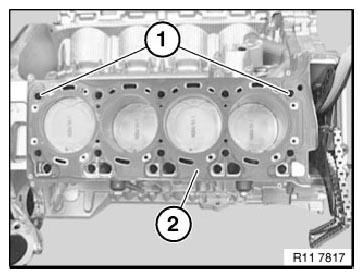

Fig 1: Identifying Cylinder Head Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Repair gasket (+REP) is 0.3 mm thicker.

Check cylinder head for SURFACE EVENNESS .

Fig 2: Identifying Cylinder Head Gasket (+REP)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
