34 41 250 Removing and installing/replacing expander for parking brake shoes
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove PARKING BRAKE SHOES
After completing tasks, adjust PARKING BRAKE .

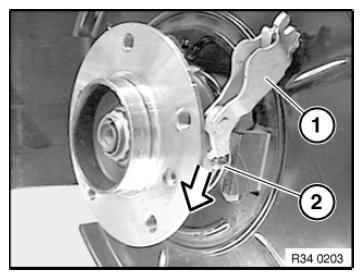

Pull brake shoe expander (1) forward, disconnect parking brake Bowden cable (2) and remove brake shoe expander.
