34 41 135 Replacing both Bowden cables for parking brake: Installation

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Tightening torque 34 41 5AZ .

Pull Bowden cable (1) out of actuator unit (2).

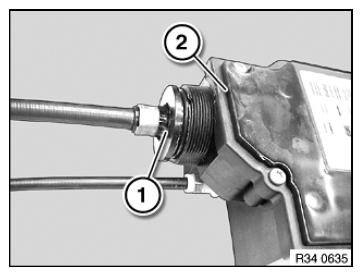

Fig 1: Identifying Bowden Cable And Actuator Unit

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Make sure all parts are absolutely clean.

Turn spindle (1) out of actuator unit (2) and remove Bowden cable.

Installation:

Lubricate new spindle with grease provided.

Insert spindle (1) 3 turns into inner spline shaft of actuator unit (2).

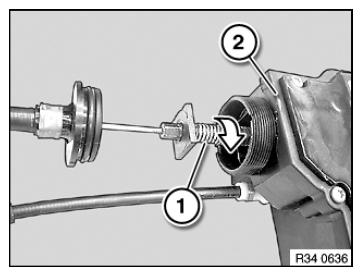

Fig 2: Turning Spindle Out Of Actuator Unit

Courtesy of BMW OF NORTH AMERICA, INC.
