Bowden cable, right

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

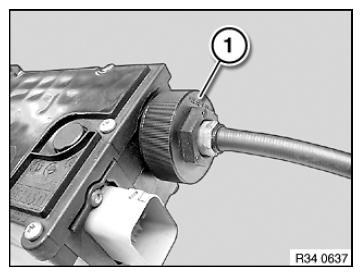

Release union nut (1).

Installation:

Tightening torque 34 41 5AZ .

Fig 1: Identifying Bowden Cable Union Nut

Courtesy of BMW OF NORTH AMERICA, INC.

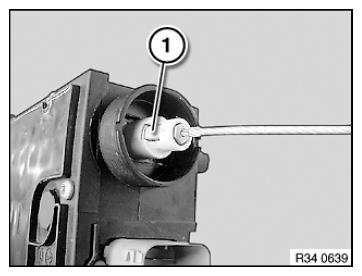

Pull Bowden cable (1) out of actuator unit (2).

Fig 2: Identifying Bowden Cable And Actuator Unit

Courtesy of BMW OF NORTH AMERICA, INC.

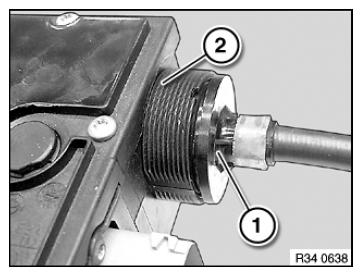

Unlock locking sleeve (1) and pull out of housing a little.

Fig 3: Identifying Locking Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

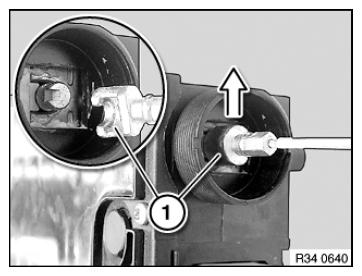

Snap out coupling (1) in direction of arrow.

Fig 4: Disconnecting Actuator Unit Coupling

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Carry out initial operation/function test in BMW diagnosis system.
- Path:
  - Function selection
  - Service functions
  - Chassis
  - Parking brake
  - Initial operation/function test
