33 41 151 Replacing left or right wheel bearing on rear axle shaft: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not damage multipole impulse ring.

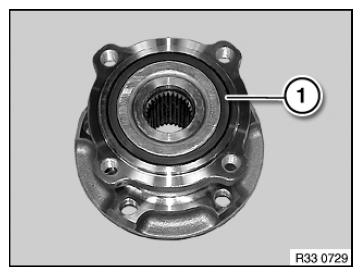

Fig 1: Identifying Multipole Impulse Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

Remove DRIVE FLANGE FOR REAR AXLE SHAFT .
Remove TOE ARM FROM WHEEL CARRIER . (F01/F02/F04/F06/F10/F12/F13/F18)

NOTE:

Check brake pads and renew if necessary!

F07/F11 only:

Deactivate and drain air spring/suspension system
Raise the wheel carrier with a workshop lift.

Release screws.

Tightening torque 33 41 2AZ.

Remove wheel bearing.

Installation note:

Replace screws.

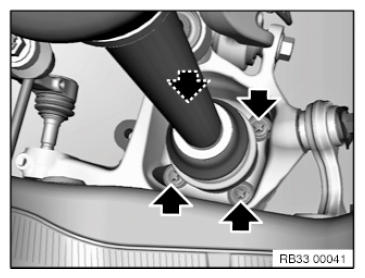

Fig 2: Locating Wheel Bearing Plate Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Keep contact surface (1) of wheel bearing and wheel carrier clean and free from oil and grease.

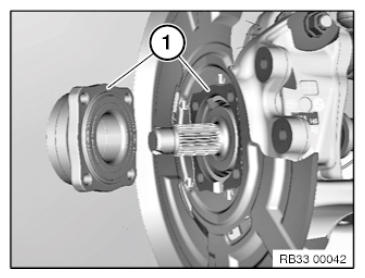

Fig 3: Identifying Wheel Bearing And Wheel Carrier Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.
