The following work steps pulling in the drive flange

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

The following tools are required to pull the drive flange in. For arrangement, see graphic:

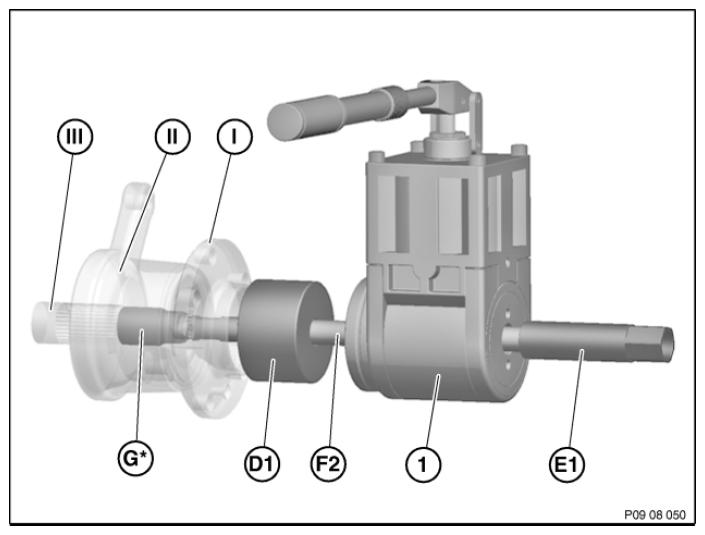

Fig 1: Fitting Output Shaft In Drive Flange Using Tools
G08505000Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The drive flange and output shaft can be installed in the wheel bearing in one operation.
