Replacing gaiter of joint on wheel side

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

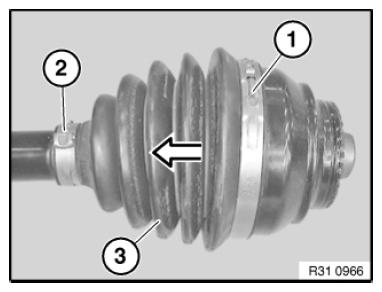

Release LOW PROFILE CLIP (1) and clip (2).

Pull back rubber gaiter (3).

Installation note:

Feed gaiter (3) into groove of joint.

Fig 1: Pulling Back Rubber Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

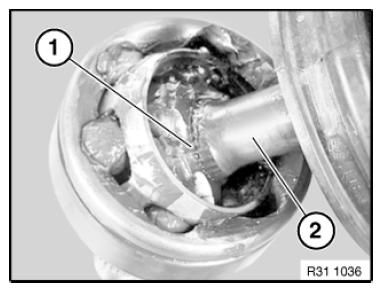

Press off joint (1) via contact pressure of circlip on shaft (2).

Installation note:

Replace circlip.

Push on joint until circlip can be heard to snap into place.

Fig 2: Identifying Circlip Joint And Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

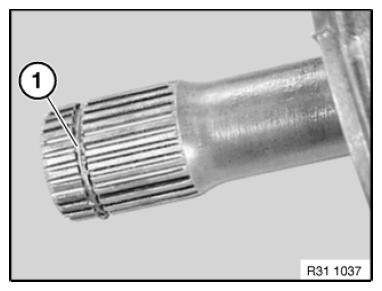

Lift out circlip (1).

Installation note:

Install retaining ring (1).

Fig 3: Identifying Circlip

Courtesy of BMW OF NORTH AMERICA, INC.

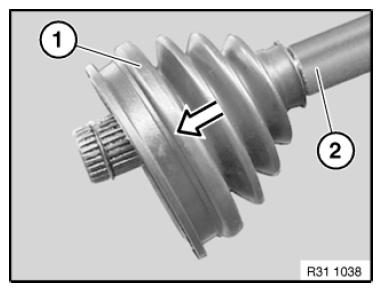

Pull off gaiter (1) over shaft (2).

Carefully clean all components with a cloth.

NOTE: Re-grease constant velocity joint with the grease from the repair kit.

Fig 4: Pulling Off Gaiter From Shaft

Courtesy of BMW OF NORTH AMERICA, INC.
