Install radial shaft seal

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The installation protective ring (1) serves to protect the sealing lips on shaft seal (2) when the output shaft is being installed.

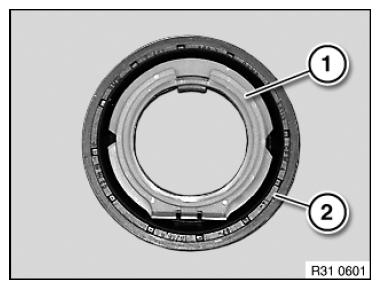

Fig 1: Identifying Radial Shaft Seal And Protective Ring
G08504696Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Drive in shaft seal with special tool 31 5 130 as far as it will go.

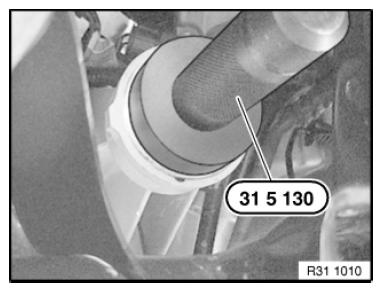

Fig 2: Installing Shaft Seal Using Special Tool (31 5 130)
G08504697Courtesy of BMW OF NORTH AMERICA, INC.
