31 53 040 Removing and installing/replacing right output shaft bearing block
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- REMOVE right output shaft.

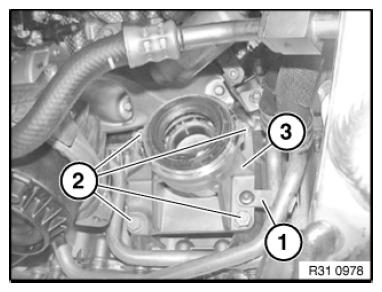

Release holder (1) from bearing support.
Unfasten screws (2).
Tightening torque 31 60 1AZ .
Remove bearing block (3) from oil sump.
Installation note:
Replace O-RING .
Replace SHAFT SEAL .
