67 65 010 Removing and installing or replacing drive unit for roller sun blind

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove panel for parcel shelf. Refer to 51 46 006 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR PARCEL SHELF .

IMPORTANT: Do not power up the drive unit if it is not completely connected to the roller sun blind. If the roller sun blind is not completely rolled up, there is spring pressure on the drive linkage.

In this case, maintain the roller sun blind under pretension and carefully lever out the linkage. Now allow the roller sun blind to roll up slowly.

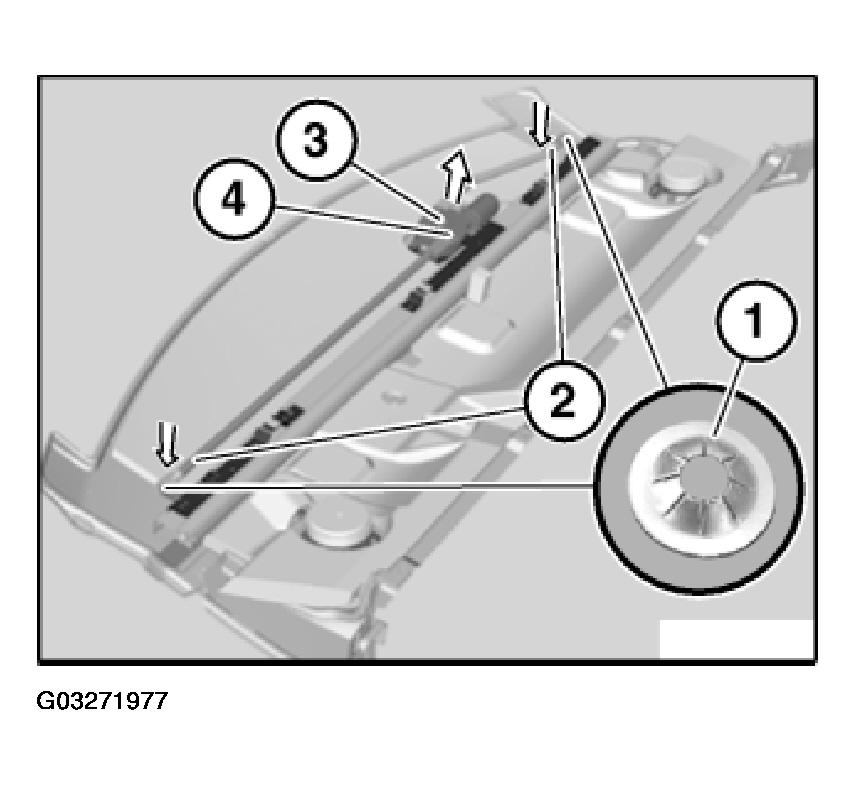

Remove locking clips (1) towards bottom.

Installation:

Replace locking clips (1).

Lever out drive linkage (2) on left and right.

Release screw (3) and remove complete drive linkage (4) towards top.

Fig 1: Locating Locking Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

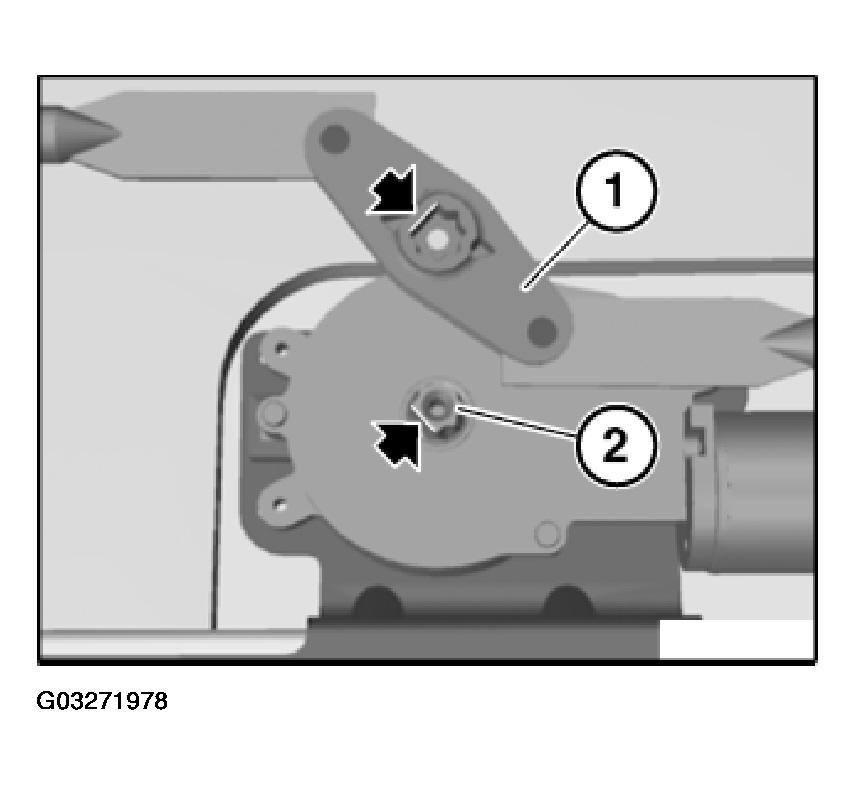

Make sure drive linkage (1) is correctly positioned on drive shaft (2).

Drive linkage (1) can only rest in one single position on the drive shaft (2).

Fig 2: Identifying Drive Linkage

Courtesy of BMW OF NORTH AMERICA, INC.

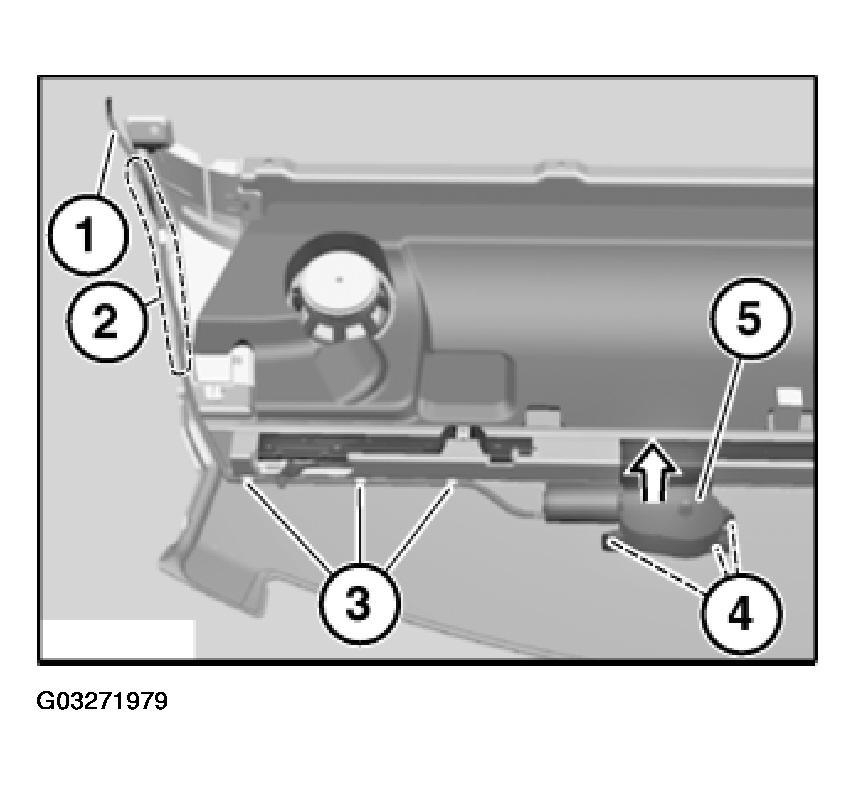

Unhook electric lead (1) in area (2) and unclip at points (3).

Release screws (4) and remove drive unit for roller sun blind (5) in direction of arrow.

Installation Instructions:

Attach screws (4) loosely only. Attach drive linkage and tighten down screws (4).

Fig 3: View Of Electric Lead

Courtesy of BMW OF NORTH AMERICA, INC.
